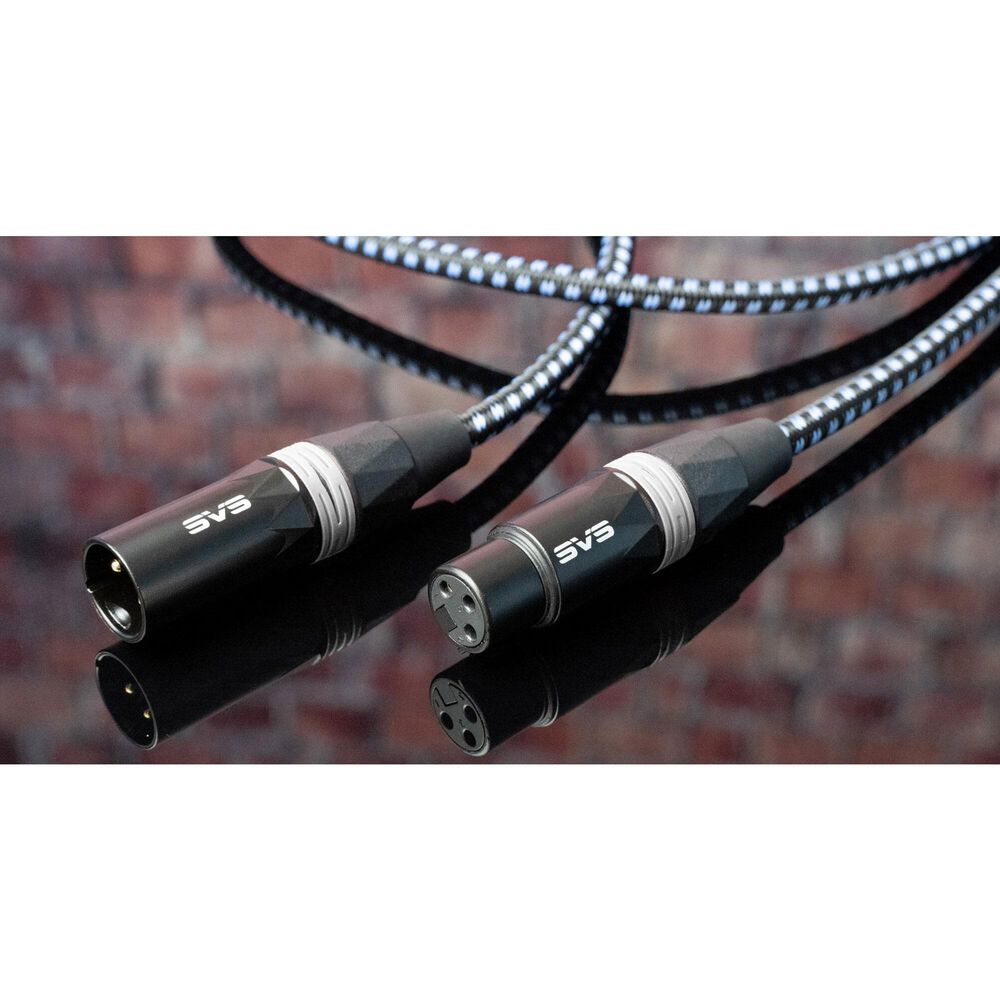

SVS 2 Meter Balanced XLR Audio Cable in Black (Pair)

Cable Description

Pristine signal transfer for convincing and immersive audio experiences. SVS SoundPath balanced XLR audio cables feature 24K gold-plated pin for optimal conductivity and five-layer insulation system to reject interference so your system always sounds its best. SVS SoundPath XLR balanced audio interconnect cables work with preamps, power amplifiers, subwoofers, AV receivers, microphones, and other audio components with balanced XLR inputs and outputs. Stereo pairs are color coded to show polarity. Densely braided cotton jacket provides easy gripping and protective outer sheath.

Cable Features

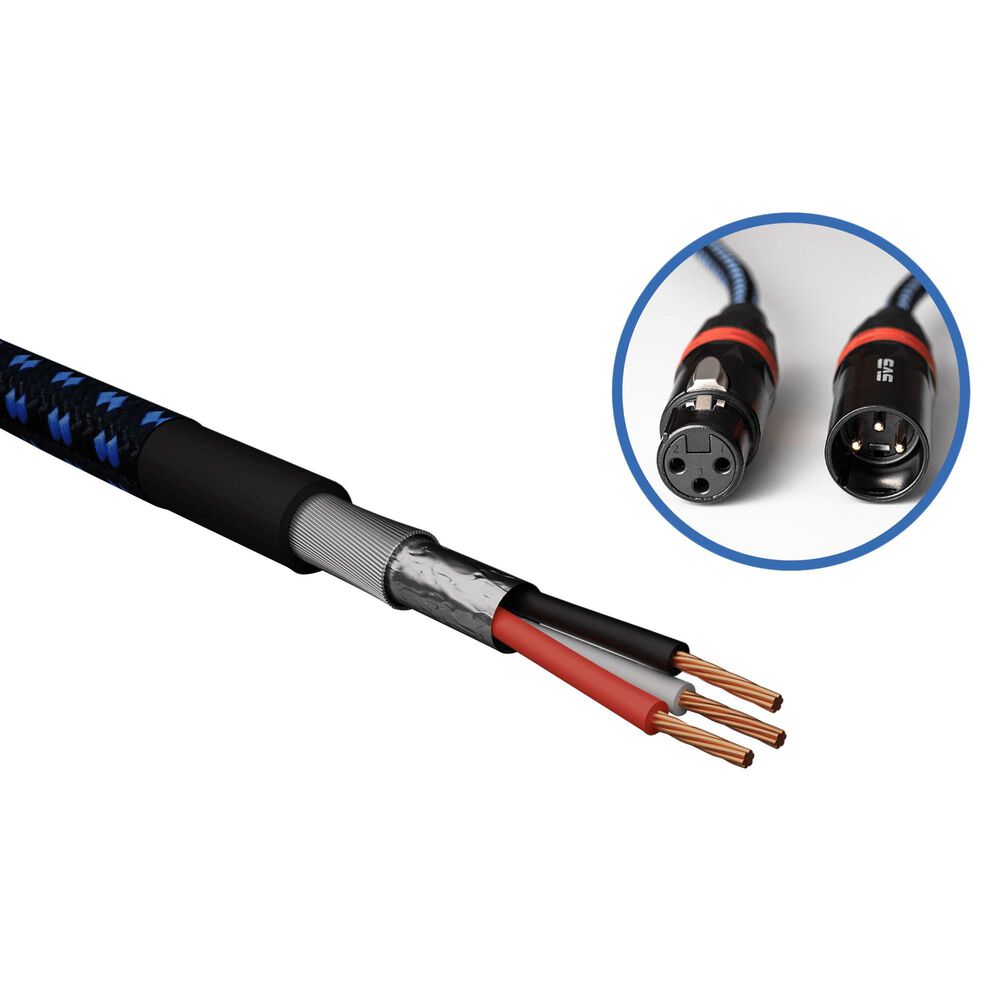

Tri-balanced high gauge 99.99% oxygen-free-copper conductors individually isolated in independent HDPE dielectric jackets for consistent flow, high purity, and minimal signal loss

1.6mm HDPE inside core dielectric - the first of the five-layer insulation system shields twisted trio of dedicated conductors

Aluminum wrap shield - the second layer in the shielding and insulation system

56-strand spiral braid of 99.99% OFC tinned copper soldered to chassis ground terminal forms critical third barrier in the five-layer insulation system to remove EMI and RF noise between electronics

High density PVC jacket wrapped in densely braided cotton jacket provides flexibility, easy gripping, and forms the final two layers in the five-layer insulation system

Five-layer isolation system rejects electromagnetic interference (EMI)

Precision-soldered with high grade lead-free solder to ensure durable and constant electrical contacts with consistent signal flow

24K gold-plated brass conductor pin for stable electrical contact and signal flow

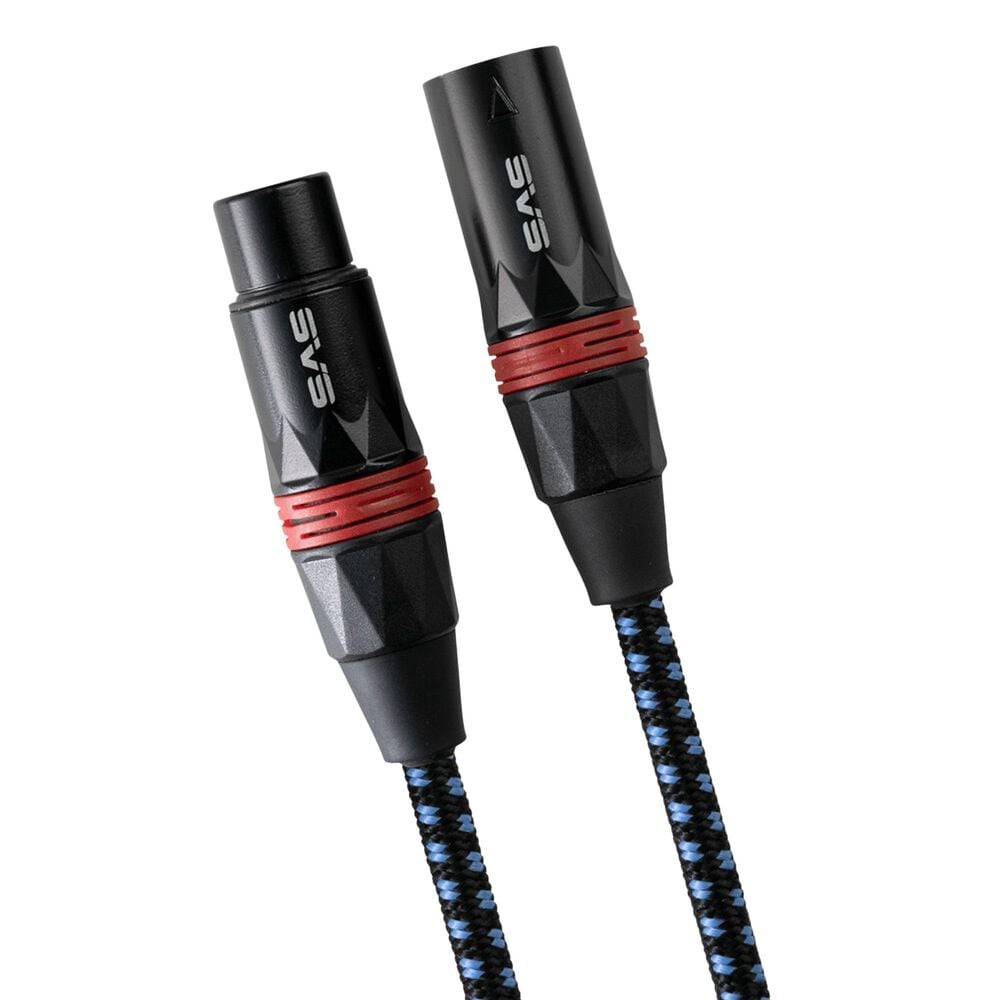

Solid zinc-alloy terminal with black nickel-plating provides stylish and durable body with comfortable handling

Red and white marking bands for easy left and right channel designation

Shield layer is hand-soldered to source terminal chassis connection for best possible grounding and noise rejection

Conductor DCR = 77 mO/meter

Shield DCR: 40 mO/meter

Nominal impedance: 110O. cable and XLR connectors are impedance-matched to minimize voltage standing wave ratio (VSWR) and return loss

Nominal capacitance: 39 pF/meter @ 1kHz

Rated bandwidth: DC-5.0 MHz (3M cable) with =1.09 VSWR and =27dB return loss

Due to lighting and monitor differences, actual colors and finishes may vary slightly from what appears online
